Features:

  • Ideal for any 1/10 to 1/8 surface application that requires lightning fast response
  • Full aluminum black anodized case
  • High voltage circuitry
  • 0.09 transit speed, and 458 oz-in of torque @ 6.0V
  • 0.08 transit speed, and 535 oz-in of torque @ 7.4V
  • 150mm and 300mm length 22awg detachable servo leads included w/gold plated connectors
  • Full metal gears and dual ball bearings
  • Brushless motor

Available Servo Leads:

  • PTK-3049: 70mm (2.75")
  • PTK-3047: 150mm (5.91")
  • PTK-3048: 300mm (11.81")

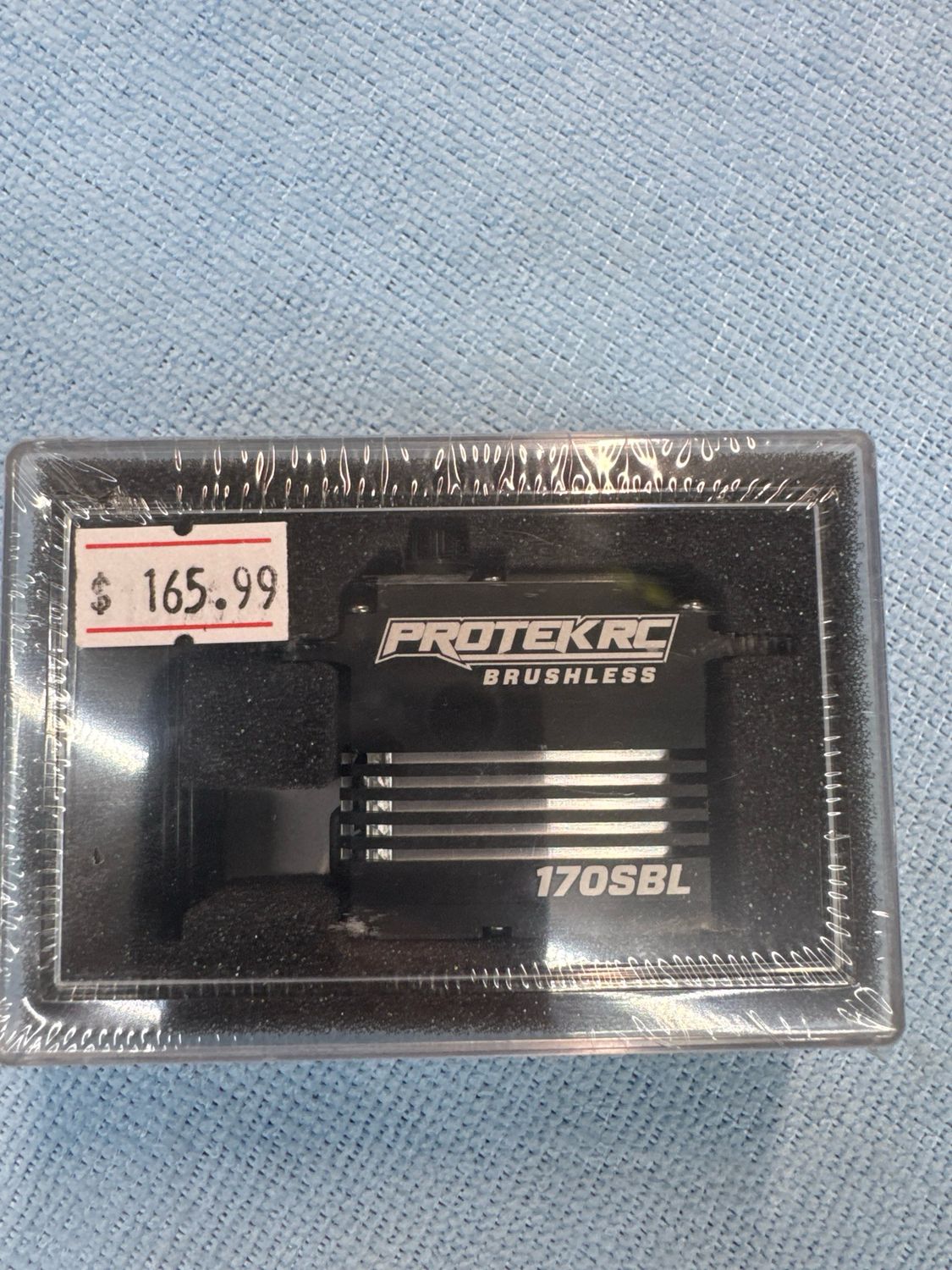

    Servo Model
    		170SBL
    Recommended Application1/10 to 1/8 Scale Surface
    Operating Voltage4.8V - 7.4V
    Operating Temperature14° to 140° F (-10 to +60° C)
    Operating Speed @ 6.0V0.09/60° sec
    Operating Speed @ 7.4V
    		0.08/60° sec
    Dynamic Torque @ 6.0V
    		458 oz-in (32.9 kg-cm)
    Dynamic Torque @ 7.4V
    		535 oz-in (38.5 kg-cm)
    Motor Type
    		Brushless Digital
    Output Shaft25 Tooth
    GearsMetal
    Weight72g
    Pulse/Frequency
    		1520?s / 333hz
    Dimensions40x20x37.8mm
    Length (Bottom to Mount)
    		28.4mm
