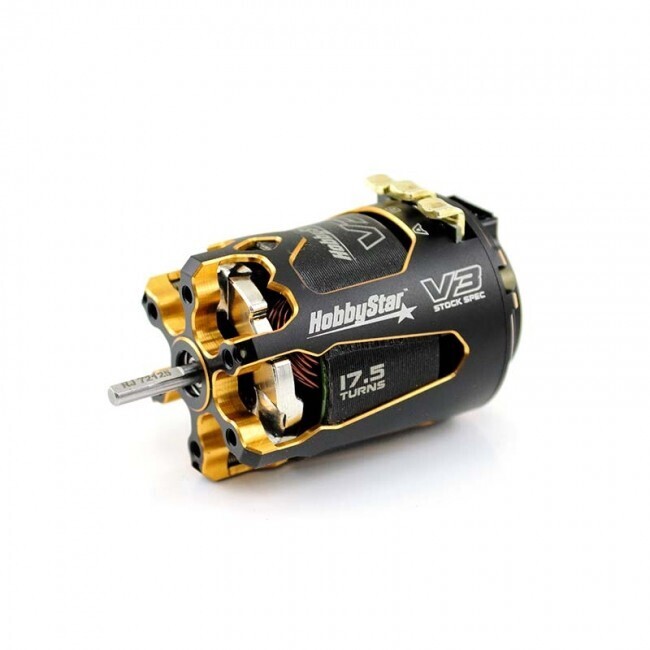

he HobbyStar 540 V3 series motors are the next generation of a championship-winning powerplant that continues to push the boundaries.
Along with looking amazing, the all-new can and stator design maximizes cooling efficiency, to raise the bar yet again. The V3 Spec-winds have shed an incredible 20g of weight, making it a full 40g lighter than the original, V1 design at only 140g.
Underneath the beautiful can lies an all-new sensor board, stronger magnets in the rotor, lightened stators, and a beefed-up endplate. Gold-plated solder tabs and titanium-nitride coated aluminum bolts keep it all together while keeping things light.
Available in Spec and MOD versions, as well as an all-new "ET" version which comes with a high-torque rotor and stator optimized for drag-racing.
Features:
- Re-designed motor can for more efficient cooling
- Increased strength neodymium rotor-magnets
- New stator design is lighter and more efficient
- Titanium-nitride coated aluminum can screws
- Gold-plated solder tabs
- Weighs 20g less than V2 motors
- Available "ET" version for drag-racing with high-torque rotor & ceramic bearings
Model | LiPo | Max Amps | Rotor Poles | IO (7.4V) | Resistance | Turns | Watts | Rotor (mm) | KV (RPM/Volt) | Weight (g) | Shaft Diameter (mm) |
2.5T MOD-ET | 1-2S | 135A | 2 | 15.3A | 0.0011 | 2.5 | 650 | 13.0*5*24.5 | 12,200 | 160 | 3.175 |
3.5T MOD-ET | 1-2S | 125A | 2 | 11.1A | 0.0016 | 3.5 | 550 | 13.0*5*24.5 | 9,005 | 160 | 3.175 |
4.0T MOD | 1-2S | 108A | 2 | 9.5A | 0.0022 | 4.0 | 490 | 12.3*5*24.5 | 8,200 | 160 | 3.175 |
4.5T MOD-ET | 1-2S | 110A | 2 | 10A | 0.0026 | 4.5 | 480 | 13.0*5*24.5 | 7,260 | 160 | 3.175 |
5.0T MOD | 1-2S | 100A | 2 | 6.0A | 0.0037 | 5.0 | 430 | 12.3*5*24.5 | 6,800 | 160 | 3.175 |
5.5T MOD-ET | 1-2S | 100A | 2 | 6.4A | 0.0039 | 5.5 | 450 | 13.0*5*24.5 | 6,065 | 160 | 3.175 |
6.5T MOD | 1-2S | 94A | 2 | 4.5A | 0.0061 | 6.5 | 390 | 12.3*5*24.5 | 5,700 | 160 | 3.175 |
7.5T MOD | 1-2S | 86A | 2 | 3.8A | 0.0072 | 7.5 | 360 | 12.3*5*24.5 | 5,000 | 160 | 3.175 |
8.5T MOD | 1-2S | 80A | 2 | 3.4A | 0.099 | 8.5 | 340 | 12.3*5*24.5 | 4,600 | 160 | 3.175 |
9.5T MOD | 1-2S | 70A | 2 | 3.1A | 0.0133 | 9.5 | 290 | 12.3*5*24.5 | 4,200 | 160 | 3.175 |
10.5T MOD | 1-3S | 65A | 2 | 2.1A | 0.0158 | 10.5 | 270 | 12.3*5*24.5 | 3,600 | 160 | 3.175 |
10.5T SPEC | 1-3S | 63A | 2 | 4.7A | 0.0149 | 10.5 | 250 | 12.5*7.2*25.2 | 4.500 | 140 | 3.175 |
13.5T SPEC | 1-3S | 49A | 2 | 4.4A | 0.0221 | 13.5 | 190 | 12.5*7.2*25.2 | 4.000 | 140 | 3.175 |
17.5T SPEC | 1-3S | 34A | 2 | 3.5A | 0.0375 | 17.5 | 130 | 12.5*7.2*25.2 | 3,100 | 140 | 3.175 |
21.5T SPEC | 1-3S | 28A | 2 | 2.4A | 0.0573 | 21.5 | 100 | 12.5*7.2*25.2 | 2.500 | 140 | 3.175 |
